TST121K1D Handheld Dual-Light Module
Thermal Modules
TST121K1D Handheld Dual-Light Module
The TST121K1D handheld dual-light module combines infrared thermal imaging with a fixed-focus visible light camera, featuring dual-light fusion capability. The thermal imaging core adopts shutterless imaging technology, providing continuous uninterrupted images with excellent shock resistance.
Detection Range
- Human (1.7m)
- Up to 1560m (50mm lens)
- Vehicle (2.3m)
- Up to 4800m (50mm lens)
Key Features
- Shutterless thermal technology - simple and robust structure, instant use
- Customizable startup logo
- OSD: battery display, electronic compass info, GPS info
- Dual-light fusion function
- Picture-in-Picture function with center area zoom
- Recording and playback function
- Built-in 2T NPU for AI human-vehicle recognition
- OLED screen driver customization available
- USB interface with MTP, UVC functions
- Onboard WiFi module with hotspot function
- 32G storage for photo and video
Technical Specifications
| NETD | ≤35mk@30°C |
|---|---|
| Weight | <40g (without lens) |
| Basic Power | 2.1W |
| Pixel Pitch | 12μm |
| Video Output | OLED, CVBS, UVC |
| Detector Type | Uncooled Vanadium Oxide |
| Spectral Range | 8~14μm |
| Visible Sensor | CMOS Low-light |
| Electronic Zoom | 2×, 4×, 8× |
| Infrared Pixels | 640×512 |

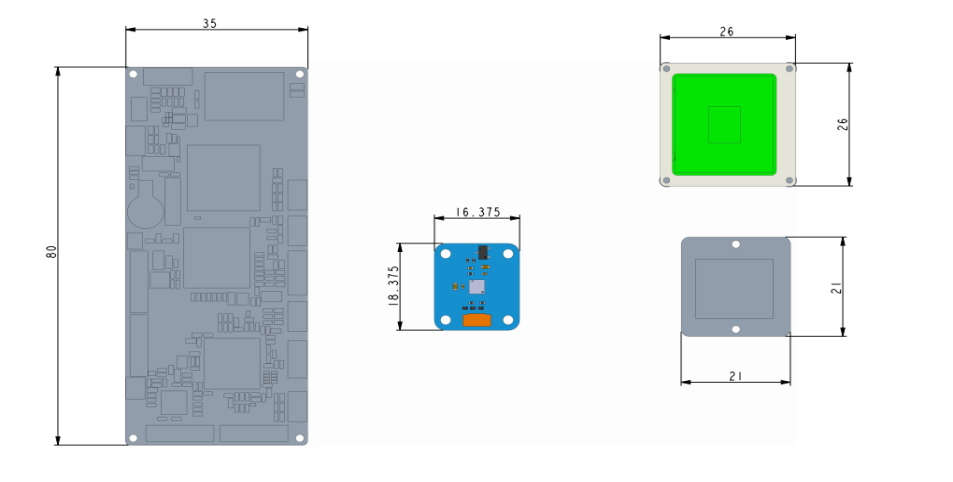

| Main Board Size | 80mm × 35mm × 7mm |
| Operating Temp. | -20°C ~ +60°C |
| Working Voltage | DC 3~9V |
| Visible Sensitivity | 0.0005lx (F1.2 AGC ON) |
| Visible Light Pixels | 2688×1520 |
Technical support scope is confirmed according to order requirements. Specifications are subject to change without notice.
