VSC111KS Thermal Camera Module
The VSC111KS infrared thermal camera module adopts an uncooled infrared detector, and is equipped with analog video output and 8-bit BT.656 digital video output. It features a compact size, making it easy to integrate into various devices.
Detection Range
- Human (1.7m)
- Up to 2340m (75mm lens)
- Vehicle (2.3m)
- Up to 7190m (75mm lens)
Key Features
- Uncooled focal plane detector
- Compact and lightweight design
- Analog CVBS video output
- Digital BT.656 parallel video output
- 12 color palettes
- Digital filtering for noise reduction
- 2x, 4x, 8x digital zoom with smooth zoom
- Full screen OSD overlay
- Wide operating temperature range
Technical Specifications
| NETD | ≤35mk@30°C |
|---|---|
| Pixels | 640×512 |
| Weight | 40g (without lens) |
| Palette | 12 types |

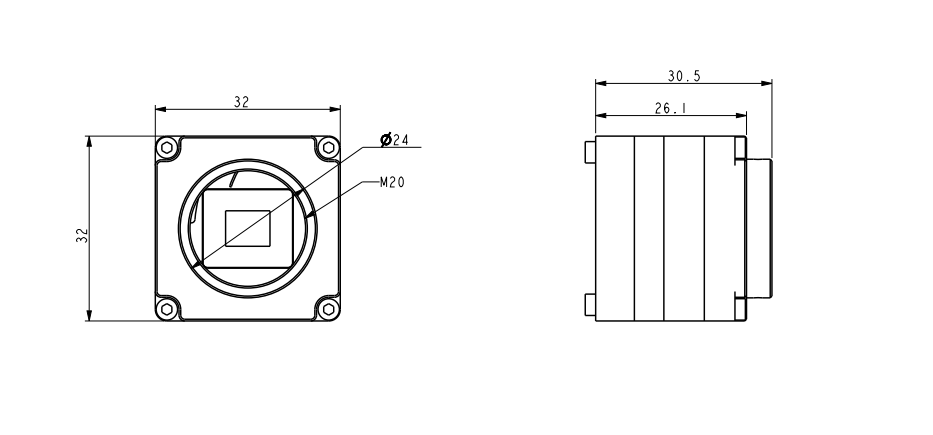

| Dimensions | 32mm × 32mm × 32.9mm (without lens) |
| Frame Rate | 25Hz or 50Hz |
| Pixel Pitch | 12μm |
| Analog Video | CVBS 50Hz (PAL) / 60Hz (NTSC) |
| Detector Type | Uncooled Focal Plane |
| Digital Video | BT.656 parallel |
| Spectral Range | 8~14μm |
| Operating Temp. | -40°C ~ +60°C |
| Working Voltage | DC 5~12V |
| Power Consumption | ≤1.95W |
Technical support scope is confirmed according to order requirements. Specifications are subject to change without notice.
